Your home air conditioner is made up of several parts that work together to remove heat, manage humidity, and move cool air through your living space. Understanding the main home air conditioning components can help you describe a problem more clearly, know what your technician is checking, and make more confident decisions about repair, maintenance, or replacement.
How Your Air Conditioner Works
A central air conditioning system cools your home by moving refrigerant through a repeated cycle. The indoor coil absorbs heat from the air inside your home. The refrigerant carries that heat to the outdoor unit, where the condenser releases it outside. At the same time, the air handler and ductwork move conditioned air through the home, while the thermostat tells the system when to start and stop.
The exact layout may vary depending on your home, equipment type, and whether your system is paired with a furnace, heat pump, or stand-alone air handler. However, most central cooling systems rely on the same core components below.
AC Components & Warning Signs
AC component | What it does | Warning signs to watch for | What to do next |
|---|---|---|---|
Thermostat | Reads indoor temperature and tells the system when to run. | System runs at the wrong time, short cycles, or does not respond to settings. | Check settings and batteries first; call a technician if the system still will not respond. |
Air filter | Captures dust and debris before air moves through the system. | Weak airflow, more dust, reduced cooling, or a frozen coil. | Replace the air filter regularly and schedule service if airflow does not improve. |
Evaporator coil | Absorbs heat and moisture from indoor air. | Warm air, ice buildup, water issues, or poor humidity control. | Call a professional for coil cleaning, refrigerant, or repair needs. |
Compressor | Pressurizes refrigerant and helps move heat out of the home. | Warm air, breaker trips, outdoor-unit noise, or no cooling. | Schedule diagnosis; compressor issues can affect repair vs. replacement decisions. |
Condenser coil / outdoor unit | Releases heat from refrigerant to outdoor air. | Reduced cooling, debris around the unit, bent fins, or overheating. | Clear visible debris safely; call for deeper cleaning or fan/electrical issues. |
Air handler / blower | Moves cooled air through the home, and usually houses filter access. | Weak airflow, uneven rooms, unusual blower noise, or poor indoor air quality. | Check the filter, then schedule inspection if airflow stays weak. |
Condensate drain line | Carries moisture removed from indoor air away from the system. | Water near the unit, musty odors, or system shutoff from a clogged drain. | Schedule drain-line clearing if water backs up or the system shuts down. |
Air ducts | Deliver conditioned air to rooms and return air to the system. | Uneven temperatures, weak vents, high bills, or air escaping into attics/crawl spaces. | Ask for a duct inspection if comfort problems continue after the AC is running. |
AC capacitor | Stores and releases electrical energy to help the compressor or fan motor start and run. | Humming, hard starts, clicking, short cycling, or an outdoor unit that will not start. | Call a technician for testing and replacement; capacitors hold electrical charge. |
AC fan motor | Powers the fan that moves air across the outdoor coil or through the indoor air handler. | Fan will not spin, weak airflow, overheating, rattling, or buzzing. | Turn the system off if the fan is not running and schedule professional diagnosis. |
Thermostat
Looking to install a new thermostat? Depending on the age of your system, there are three basic types of thermostats: electro-mechanical, digital, and smart. Their role is the same—controlling your system to deliver the exact room temperature you desire—but their operation is different. Digital thermostats are also now available with Internet connectivity, offering a whole new level of comfort and convenience.
Electro-mechanical thermostats are the older types with little metal coils and a mercury tube inside. As the temperature in a room shifts, the coils either contract or expand, pushing the mercury to one end of its tube or the other, which signals the HVAC system to either turn on or off.
Digital thermostats are much more accurate at keeping your home comfortable. Most models today are programmable, which means you can set times for your system to run or shut down. Because you have much more control, you can save on your energy costs by reducing your heating and cooling when you don't need as much.
WiFi-enabled smart thermostats allow you to set your temperature from wherever you are using your computer or mobile device. Many can also detect when your house is occupied or empty, learn your routine and preferences, and adjust the temperature accordingly. The result? Lower utility bills—and a much more predictably comfortable home. The Nest Learning Thermostat is a great example of this technology.
Air Conditioning Compressor
What is an air conditioner compressor? It's a simple question that sometimes requires a lengthy and detailed explanation, but you can boil it down to this: an air conditioner compressor "squeezes" refrigerant in order to add energy and get the cooling process started. The real question is how to keep it in good working order—and how to tell when a little expert attention is needed.
But before you schedule an appointment, it's a good idea to familiarize yourself with the compressor's role in cooling your home.
Refrigerant arrives at the compressor as a cool, low-pressure gas. The compressor adds pressure to increase its energy and temperature, and the working fluid leaves the compressor as a hot, high-pressure gas.
This compressed gas then passes to the condenser, the part of your air conditioner that has metal fins all around. The fins help the heat dissipate more quickly.
When the working fluid leaves the condenser, its temperature is much cooler, and it has changed from a gas to a liquid under high pressure. It then heads inside to complete the cooling process in the evaporator coil.

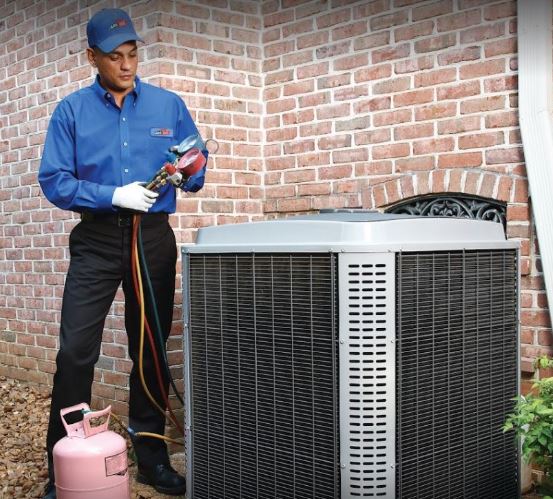

In a central air conditioning system, the compressor (and the condenser) is located in the box outside your home. If your air conditioner runs, but is only blowing warm air and not cooling your home, the problem is often the AC compressor.
Evaporator Coil
The AC evaporator coil replacement is the air conditioning component that absorbs heat energy from the surrounding air, transforming hot, humid air into something cooler, drier, and more comfortable.
There's a lot of ingenious science behind air conditioning and HVAC systems, but the process in the end is actually quite straightforward. Here's how your evaporator coils work:
The compressor and condenser turn the Freon (or similar refrigerant gas) into a cool liquid under intense pressure.
Evaporator coils allow the liquid to evaporate back into gas.
The evaporation process extracts heat from the surrounding air, lowering the air temperature.
Now that you have cool air, it needs to circulate through your home, and that's where the air handler comes in.
Air Handlers
An air handler is the indoor unit that provides conditioned air circulation through your home.
An air-handling unit typically includes:
A blower
Heating and/or cooling elements
Filter racks or chambers
Dampers
Air handlers usually connect to ductwork that distributes the conditioned air through the building and returns it to the air handler.
If you have a forced air furnace, the air handler is the part that blows the hot air out. It probably also circulates cooled air from your air conditioner.
If you don't have a furnace, you may have a stand-alone air handler to blow cool air from your air conditioner and/or hot air from your heat pump through your home's ductwork.
AC filter replacement regularly is the key maintenance for your air handler, whether it's part of your furnace or a stand-alone unit. You should also have your entire system inspected and maintained by a professional each year to make sure that any potential problems are caught before they become big.
AC Capacitors
The AC capacitor is a small electrical component that helps provide the extra energy needed to start or run motors inside the cooling system. A failing capacitor can make an air conditioner hum, click, struggle to start, short cycle, or stop cooling even though the thermostat is calling for air conditioning.
AC capacitor replacement and testing should be handled by a trained technician because capacitors can hold an electrical charge. If your outdoor unit will not start, the fan does not spin, or the system repeatedly struggles to turn on, schedule AC service before continuing to run the equipment.
AC Fan Motors
AC fan motors help move air where the system needs it. The outdoor fan motor moves air across the condenser coil so heat can leave the refrigerant, while indoor blower motors help move cooled air through the ductwork.
A fan motor problem can cause weak airflow, warm air, overheating, buzzing, rattling, or an outdoor unit where the compressor runs but the fan does not spin. Turn the system off and call for service if a fan is not running normally, because continued operation can strain other AC components and cause AC fan motor replacement.
Air Ducts
Your air conditioning is a complex system, but it can only be as effective as the air ducts that circulate the conditioned air. To fully feel the benefits of your air conditioning and heating system, your ductwork must be well-designed, sealed, and maintained.
It's Not Just About the Equipment
What most people don't realize is that their equipment is only part of the solution. To fully feel the benefits of your air conditioning and heating system, your ductwork must be as well-thought-out and maintained as your HVAC unit.
You Don't Need a New Home to Improve Ductwork
You don't have to build a new house to improve the efficiency of your ductwork. One thing you can look at is your duct's configuration. A radial design, where air supplies and returns have direct connections to the unit, or a trunk and branch design, where supplies and returns branch off from a long "trunk" directly connected to the unit, are best for most houses.
Poor Ductwork = Lost Energy
Poorly planned or installed ducts can negate energy savings. Joints that aren't sealed properly can allow a lot of that precious heated or cooled air to escape. The same applies to old ductwork that may be kinked, restricting airflow, or out-of-date. Even newer ducts, when placed in areas where temperatures can be extreme (like attics), can experience difficulty maintaining the temperature. If your AC ducts need replacement, it’s best to speak to a knowledgeable professional.
See Our Full AC Service Offerings
Get Your System Inspected
You should also have your entire system inspected and maintained by a professional each year to ensure any potential problems are caught before they become more significant (and more expensive to repair!).
